Martin F. Schlögl's r/c models - multicopter

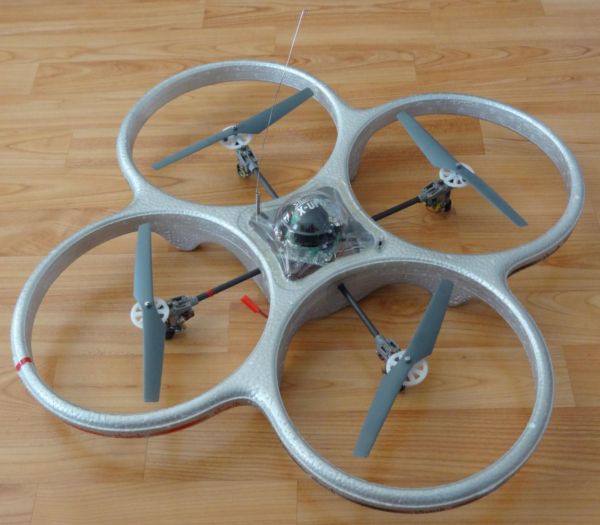

Silverlit 85612 X-Ufo Version 2

frame size 340 mm length/width incl. fuselage: 600 mm weight: 230 g (without battery) controls: pitch, roll, yaw, collective pitch five electric engines (two rotors clockwise, two counter-clockwise, and an extra engine for the gyro) "+" configuration transmitter: proprietary radio, 4 proportional channels, 27 MHz battery: NiMH 12 V, 350mAh purchased September 2006 the mechanical gyro broke very easily - returned to store after two replacements

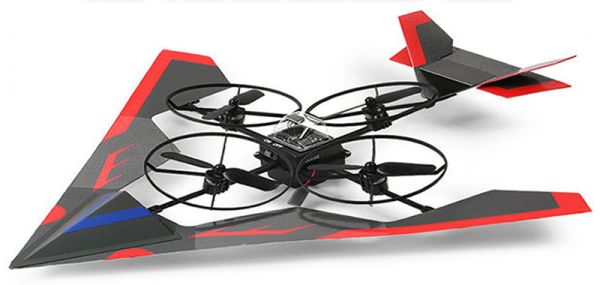

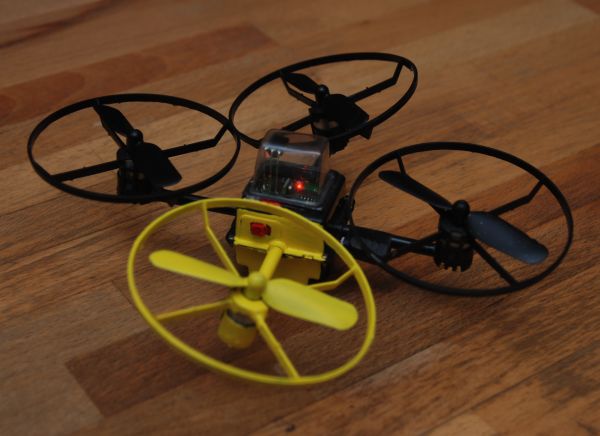

E-Flight 200808 Jump Jet

frame size 190 mm wing span: 340 mm weight: 65 g (60 g without fuselage) controls: pitch, roll, yaw, collective pitch four electric engines, all rotors running counter-clockwise (two vertically, two inclined) "+" configuration transmitter: proprietary infrared control, 4 proportional channels battery: 3S LiPo 11.1 V, 180 mAh
	foam bodywork removed for better performance and improved flight time. purchased December 2008 sold 2016

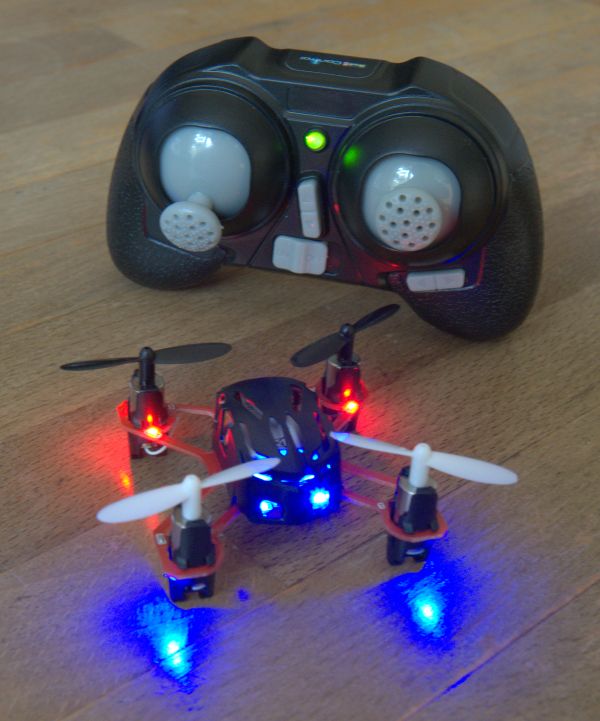

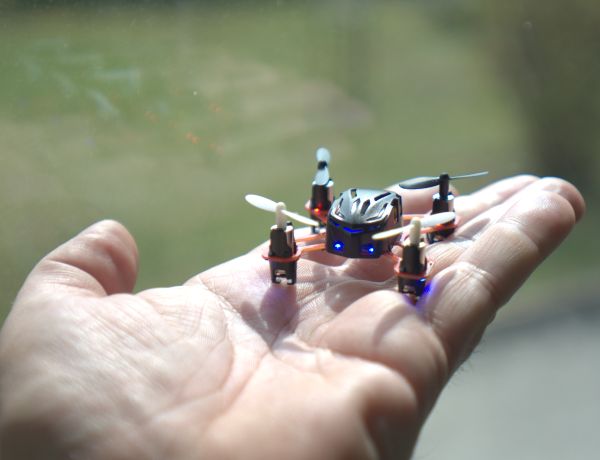

Revell 23971 Nano Quad XS

identical with Hubsan H111 Q4 Nano and Estes 4606 Proto X Nano frame size 50 mm length/width: 45 mm weight: 11.5 g controls: pitch, roll, yaw, collective pitch four electric engines, coreless brushed type LED lights battery: internal 1S LiPo 3.7 V, 100 mAh transmitter: proprietary radio, 4 proportional channels, 2.4 GHz
	purchased April 2014

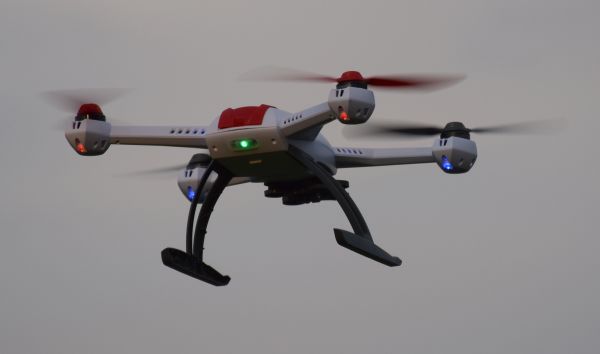

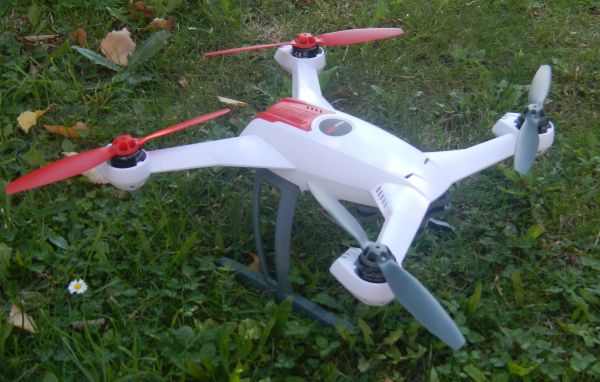

E-Flite BLH7800 Blade 350 QX

frame size 350 mm length/width: 465 mm weight: 680 g (525 g without battery) controls: pitch, roll, yaw, collective pitch, camera tilt four electric engines, brushless outrunner 1100 KV integrated Spektrum receiver, 2.4 GHz DSMX, telemetry esc: four 10 A battery: 3S LiPo 11.1 V, 2700 mAh, 20C prop: 8 x 4.5" (20 x 11.5 cm) GPS receiver, compass, barometric height sensor
	purchased September 2014 in used condition maiden flight 2014-09-05 sold 2020 onboard flight video of the 1.MMFC airfield

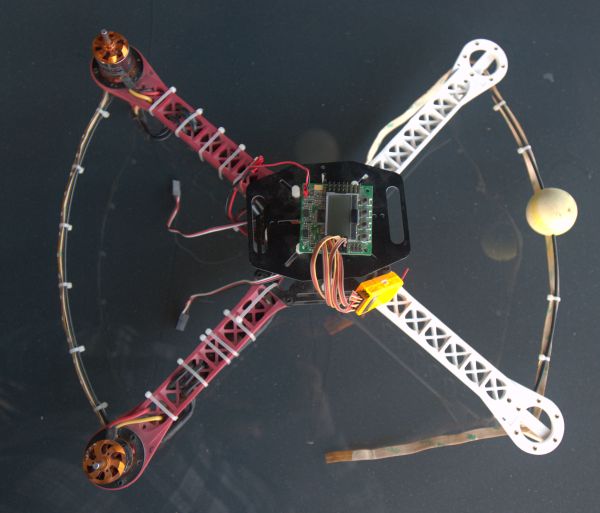

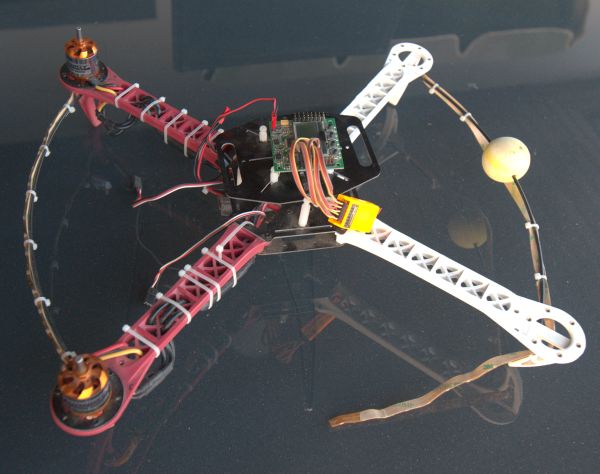

Tarot SK450

frame size 450 mm controls: pitch, roll, yaw, collective pitch engines: four Turnigy D2836-9, brushless outrunner 950 KV esc: four Turnigy TY-P1 25 A prop: 8 x 4.5" (20 x 11.5 cm) flight controller: KK2.0 Multi-rotor LCD Flight Control Board, firmware 1.6 receiver: Orange R610, 6 channels, Spektrum compatible 2.4 GHz DSM2 battery: 3S - 4S Lipo LED stripes
	found 2014, crashed into a field and damaged by a combine harvester owner not detectable, so I'll try to repair it...

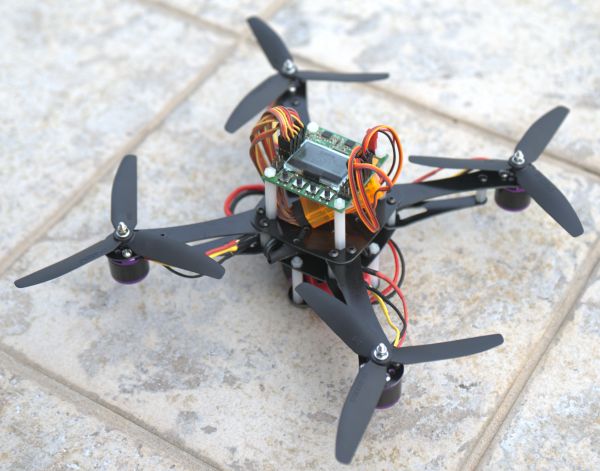

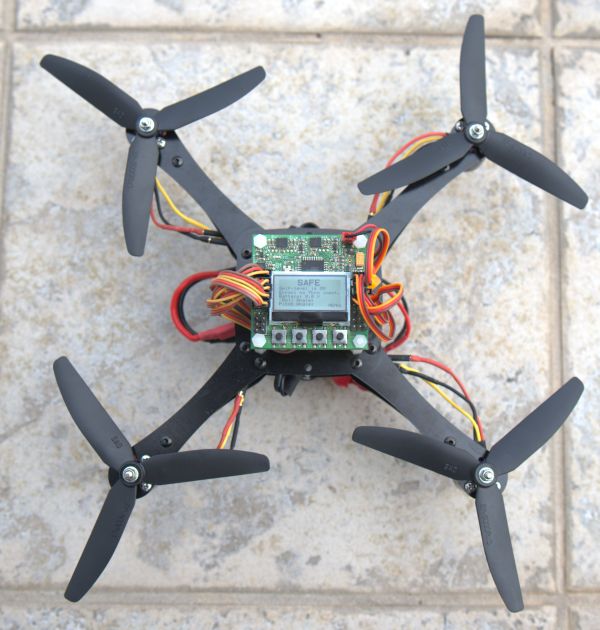

X230 / XHeli CR4-230

frame size 230 mm length/width: 290 mm weight: 400 g (330 g without battery) controls: pitch, roll, yaw, collective pitch engines: four CRY6-170 2222/1800KV, brushless outrunner esc: four ZTW 12 A prop: 5 x 3" (12 x 8 cm), 3 blades flight controller: KK2.0 Multi-rotor LCD Flight Control Board, firmware 1.6 receiver: Orange R610, 6 channels, Spektrum compatible 2.4 GHz DSM2 battery: 3S LiPo 11.1 V, 1300 mAh, 20C

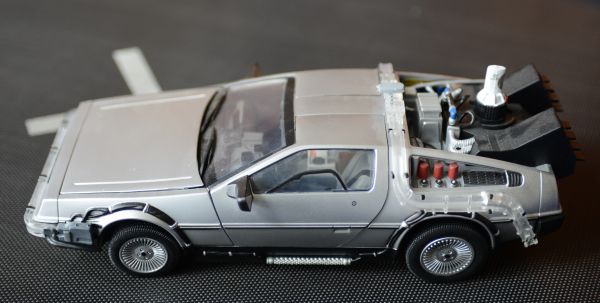

	built March 2014 maiden flight 2015-03-29 scheduled for Marty McFly's arrive in October 2015 ;)

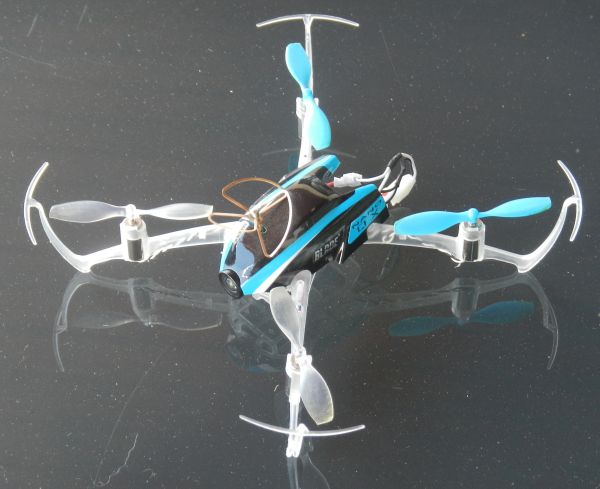

E-Flite BLH7280 Blade Nano QX FPV

frame size 100 mm length/width: 140 mm weight: 22 g controls: pitch, roll, yaw, collective pitch four electric engines, coreless brushed type LED lights telemetry battery: 1S LiPo 3.7 V, 200 mAh FPV Camera 5.8 GHz video transmitter
	purchased June 2016 in used condition maiden flight 2016-06-20 sold 2017

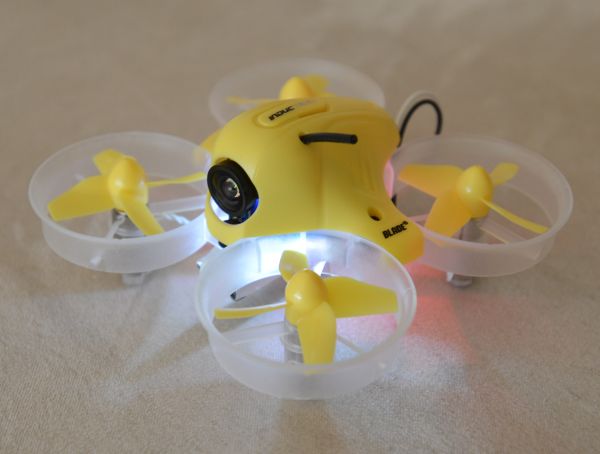

E-Flite BLH8580 Blade Inductrix FPV

frame size 65 mm length/width: 83 mm weight: 24 g controls: pitch, roll, yaw, collective pitch four electric engines, coreless brushed type LED lights telemetry battery: 1S LiPo 3.7 V, 200 mAh FPV Camera 5.8 GHz video transmitter
	purchased January 2017 maiden flight 2017-01-10

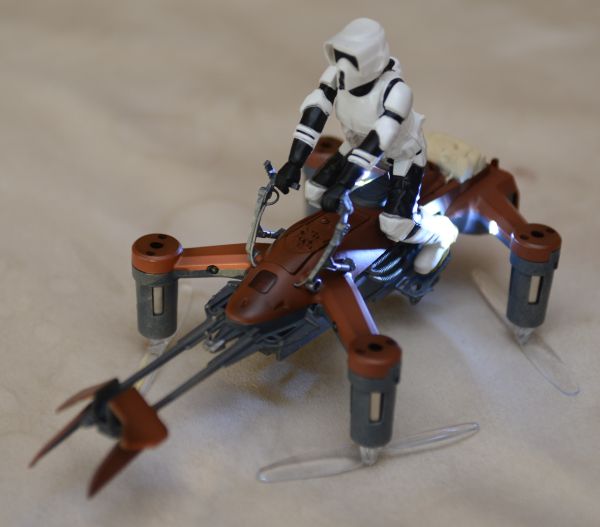

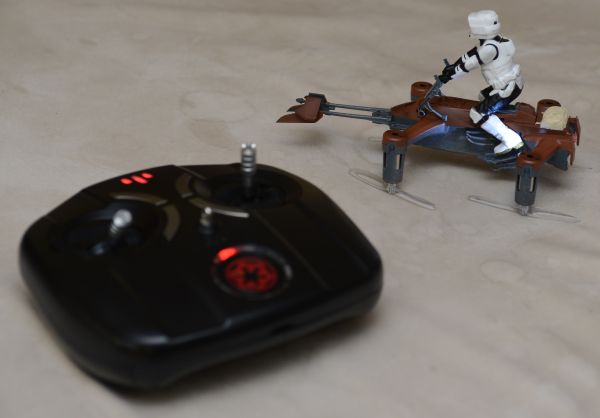

Propel Star Wars 74-Z speeder bike

frame size 110 mm length: 180 mm width: 90 mm weight: 92 g (67 g without battery) controls: pitch, roll, yaw, collective pitch, lights, laser four electric engines, coreless brushed type LED lights LED lasertag battery: 1S LiPo 3.7 V, 800 mAh transmitter: Propel proprietary radio, 2.4 GHz, bluetooth
	purchased October 2017 maiden flight 2017-10-08

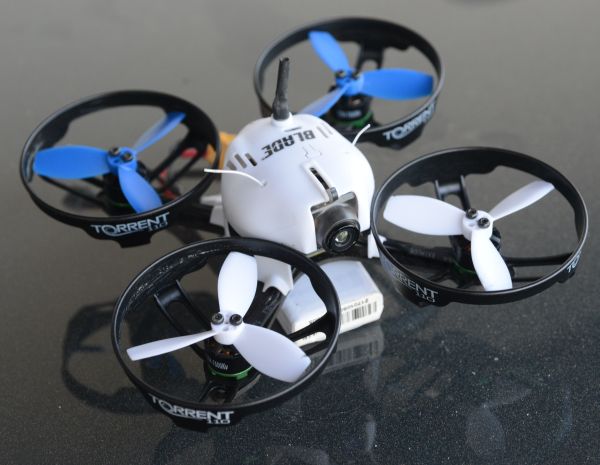

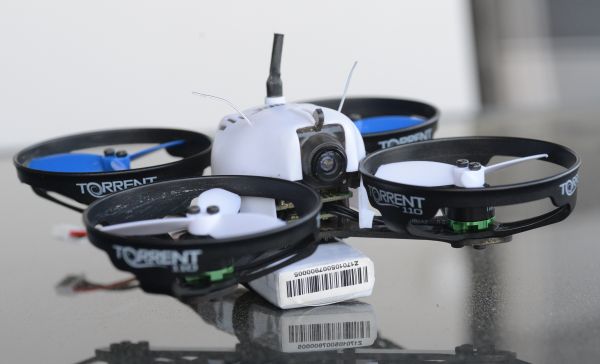

E-Flite BLH04050 Blade Torrent 110 FPV

frame size 110 mm length/width: 140 mm weight: 120 g controls: pitch, roll, yaw, collective pitch four Thrust 1104 brushless outrunner engines, 7600 KV flight controller: Spektrum SPMFCMF300 Micro F3, Betaflight firmware receiver: Spektrum SPM4649T receiver, integrated telemetry video transmitter: Spektrum SPMVTM150, 5,8 GHz 600TVL FPV Camera battery: 2S LiPo 7.4 V, 950 mAh, or 3S LiPo 11.1 V, 450 mAh

purchased April 2018 in used condition maiden flight 2018-04-19

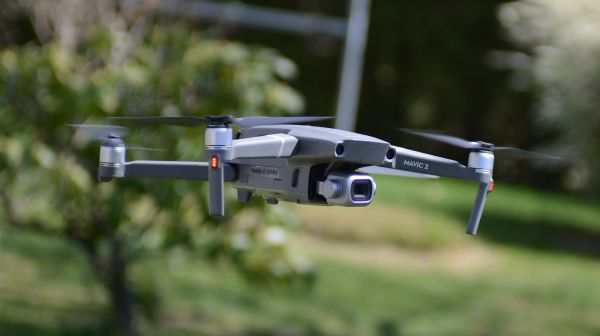

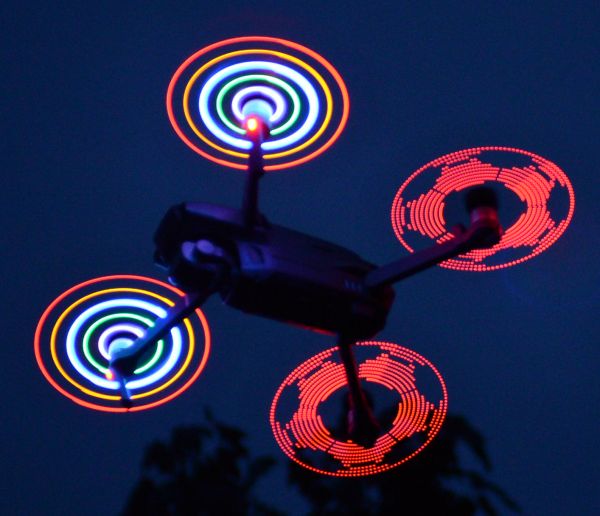

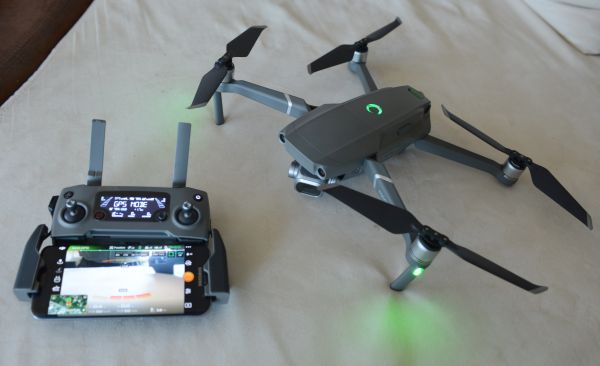

DJI Mavic 2 Pro

frame size 350 mm length: 322 mm width: 242 mm weight: 907 g controls: pitch, roll, yaw, collective pitch, gimbal, camera GPS receiver, compass, barometric height sensor obstacle avoidance sensors on all sides proprietary DJI transmitter and receiver/flight controller, 2.4/5.8 GHz telemetry and 1080p Video downlink Hasselblad L1D-20c camera, 10mm (28mm 35mm-equiv), f/2.8 to f/11, 1" CMOS sensor, 5472x3648, 4K Video 3D Gimbal battery: 4S LiPo 14.8 V, 3850 mAh purchased April 2020 maiden flight 2020-04-08

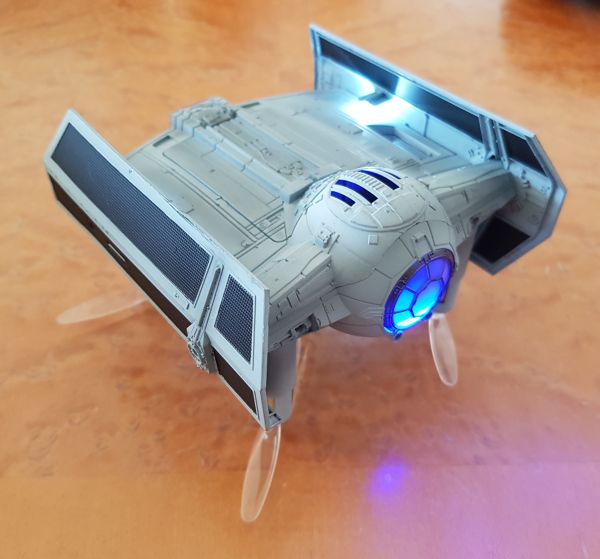

Propel Star Wars x1 advanced TIE fighter

frame size 110 mm length: 110 mm width: 75 mm weight: 104 g (79 g without battery) controls: pitch, roll, yaw, collective pitch, lights, laser four electric engines, coreless brushed type LED lights LED lasertag battery: 1S LiPo 3.7 V, 800 mAh transmitter: Propel proprietary radio, 2.4 GHz, bluetooth
	purchased May 2020 maiden flight 2020-05-07

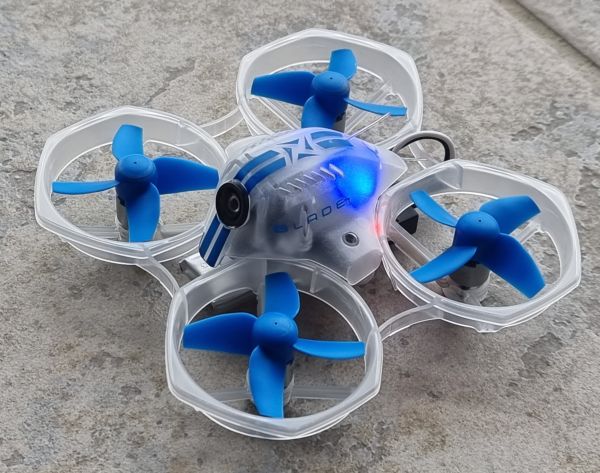

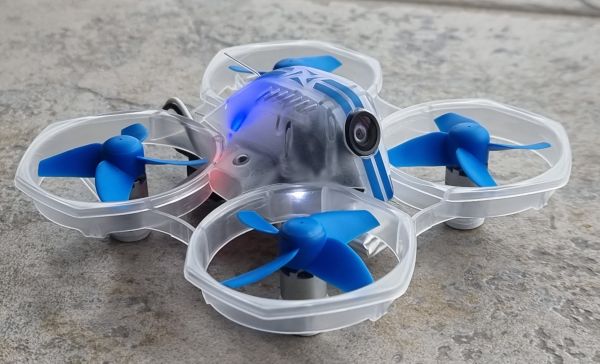

E-Flite BLH8850EU Blade Inductrix FPV BL

frame size 83 mm length/width: 95 mm weight: 52 g controls: pitch, roll, yaw, collective pitch four electric brushless engines LED lights telemetry, on screen display battery: 1S LiPo 3.7 V, 500 mAh FPV Camera 5.8 GHz video transmitter
	purchased April 2022 maiden flight 2022-04-25
