Martin F. Schlögl's r/c models - indoor planes

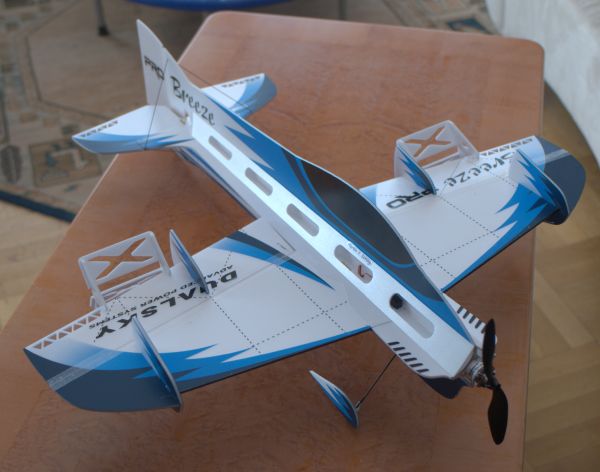

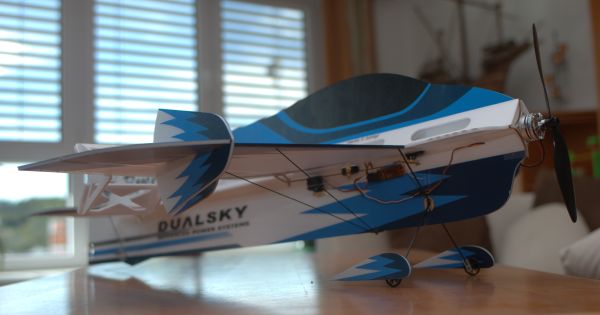

Dualsky Breeze Pro

silhouette foam r/c aerobatic 3D shockflyer wing span: 780 mm length: 850 mm weight: 160 g (130 g without battery) controls: ailerons, rudder, elevator, throttle engine: brushless outrunner Dualsky XMotor XM2812RTR-27 with integrated 6A esc, 1780 KV, 70 W prop: GWS 9 x 4.7" (23 x 12 cm) receiver: Orange R410, micro 4 channels, Spektrum compatible 2.4 GHz DSM2 servos: 3x Sub-Micro 8mm battery: 2S LiPo, 7.4 V, 450 mAh, 20C

built September 2011 maiden flight 2012-03-28 wrecked 2023-02-20

Parkzone PKZU1280 Mini Vapor

miniature r/c plane wing span: 220 mm length: 298 mm weight: 9,1 g (7,7 g without battery) controls: rudder, elevator, throttle engine: coreless brushed 6mm engine prop: 4.9 x 1.5" (12.5 x 3.9 cm) receiver: Spektrum PKZU1252 "all-in-one" electronics (3 channel 2.4 GHz DSMX receiver, esc, telemetry two onboard-servos) battery: 1S LiPo 3.7 V, 30 mAh
	purchased November 2012 maiden flight 2012-11-26 finally - a plane small enough to fly in my living room :)

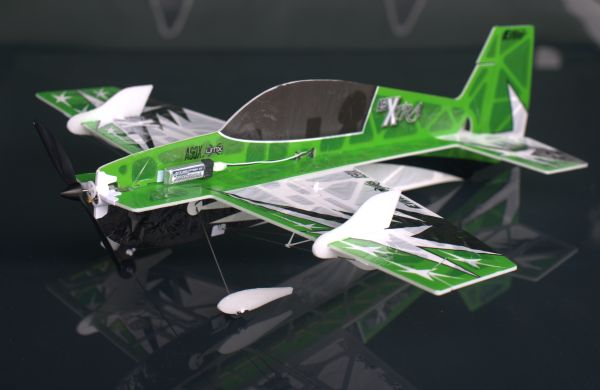

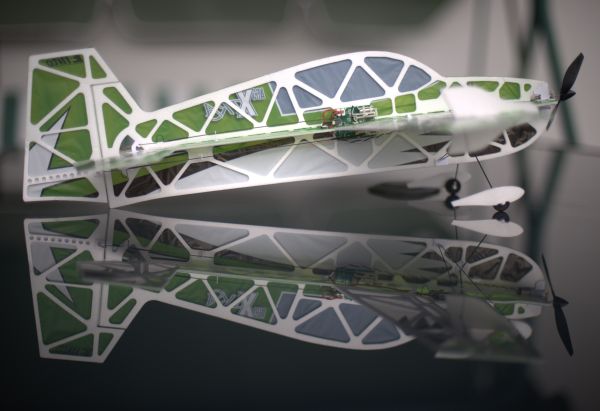

E-Flite EFLU5150 UMX AS3Xtra

miniature silhouette foam r/c aerobatic 3D shockflyer wing span: 426 mm length: 503 mm weight: 36,5 g (32 g without battery); carbon-reinforced wing edges adding 3g controls: ailerons, rudder, elevator, throttle engine: coreless brushed 8.5mm engine prop: 5 x 2.75" (13 x 7 cm) receiver: Spektrum EFLU5164 "all-in-one" electronics (6 channel 2.4 GHz DSMX receiver, telemetry, esc, AS3X gyro, two onboard-servos) servos: 2 Spektrum SPMSA2030L 2.3 g Ultra-Micro servo battery: 1S LiPo 3.7 V, 150 mAh

purchased November 2014 maiden flight 2014-11-13

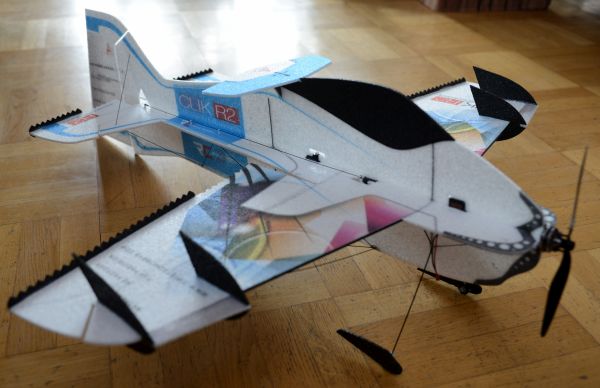

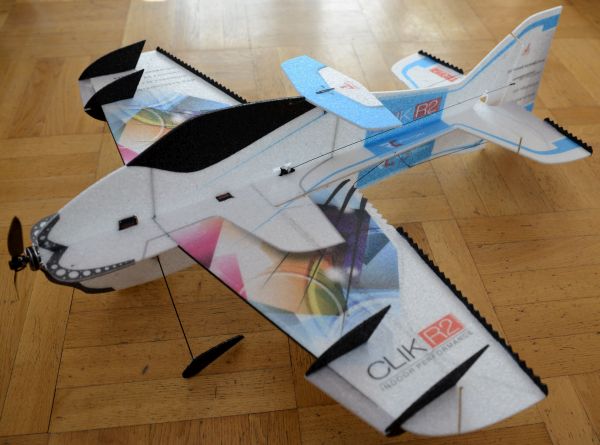

RC-Factory Clik R2

silhouette foam r/c aerobatic 3D shockflyer wing span: 840 mm length: 940 mm weight: 145 g (120 g without battery) controls: ailerons, rudder, elevator, throttle engine: brushless outrunner T-Motor Tiger AT2202-21, 1620 KV, 40/60 W (2S/3S) esc: T-Motor T-6A, 400Hz, 6 A prop: GWS 8 x 4.3" (20 x 11 cm) receiver: Orange R410, micro 4 channels, Spektrum compatible 2.4 GHz DSM2 servos: 3x Gening D541BB Nano Digital battery: 2S LiPo, 7.4 V, 350 mAh, 20C

purchased April 2017 maiden flight 2017-09-30 wrecked 2024-12-27

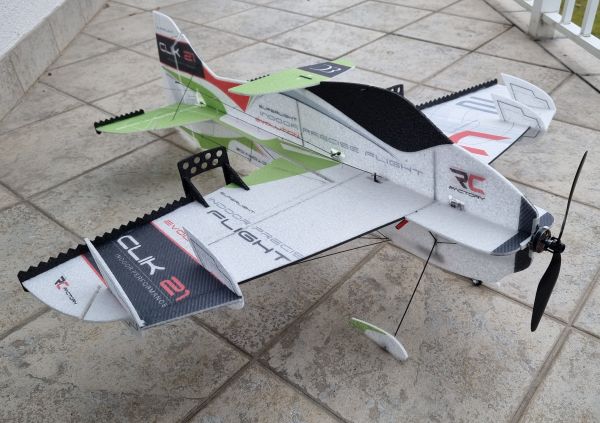

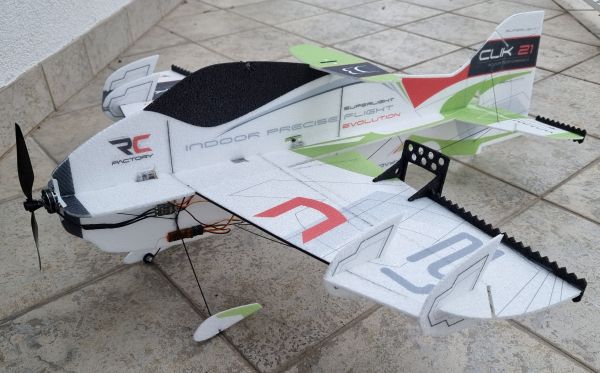

RC-Factory Clik 21

silhouette foam r/c aerobatic 3D shockflyer wing span: 840 mm length: 940 mm weight: 150 g (125 g without battery) controls: ailerons, rudder, elevator, throttle engine: brushless outrunner T-Motor Tiger AT2202-21, 1620 KV, 40/60 W (2S/3S) esc: RC-Factory Volta 15A SBEC, 15 A prop: GWS 8 x 4.3" (20 x 11 cm) receiver: Orange R410, micro 4 channels, Spektrum compatible 2.4 GHz DSM2 servos: 3x HiTec HS-40 Nano battery: 2S LiPo, 7.4 V, 350 mAh, 20C

purchased December 2022 maiden flight 2022-12-08 wrecked 2024-12-27

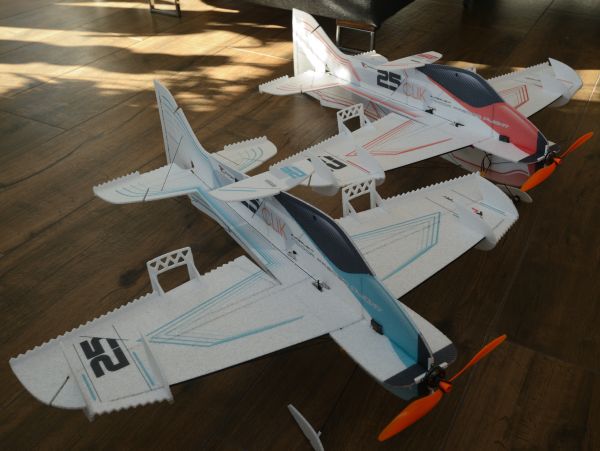

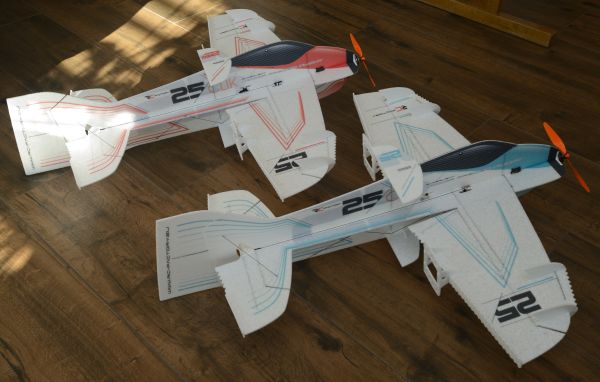

RC-Factory Clik 25

silhouette foam r/c aerobatic 3D shockflyer wing span: 840 mm length: 950 mm weight: 150 g (125 g without battery) controls: ailerons, rudder, elevator, throttle engine: brushless outrunner T-Motor Tiger AT2202-21, 1620 KV, 40/60 W (2S/3S) esc: RC-Factory Volta 15A SBEC, 15 A prop: GWS 8 x 4.3" (20 x 11 cm) receiver: Orange R410, micro 4 channels, Spektrum compatible 2.4 GHz DSM2 servos: 3x HiTec HS-40 Nano battery: 2S LiPo, 7.4 V, 350 mAh, 20C

purchased December 2024 maiden flight 2024-12-28
