Martin F. Schlögl's r/c models - gliders

Gerd Kirchert GK874 Standard Airfish

design Erich Jedelsky 1974 wooden r/c glider with auxiliary engine wing span: 2450 mm length: 1160 mm controls: rudder and elevator (fixed throttle) engine: "Pet O.S. 099", 1.62 ccm, 0.12 kW, fixed carburetor prop: 7 x 4" (18 x 10 cm) receiver: Graupner varioprop mini superhet 35 servos: 2x Graupner varioprop micro servo C05
	built November 1977 My first plane, very easy to fly - perfect for beginners Some crashes and repairs - once crashed down in the middle of a forest after several hour's thermal flight, due to receiver battery running low. The plane hung there in a tree through the whole wintertime 1978/1979...

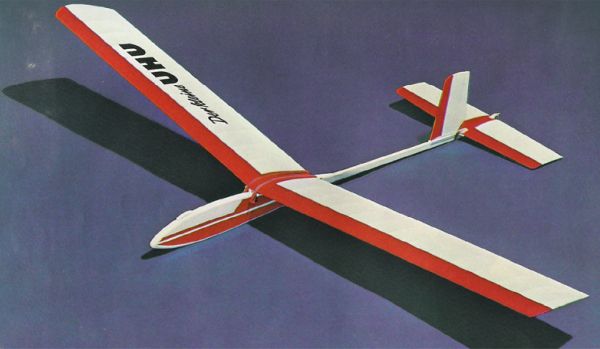

Graupner 4223 Der kleine Uhu ("the little eagle owl")

wooden free flight glider wing span: 1100 mm length: 730 mm weight: 230 g controls: automatic rudder connected to the towline hook elevator used as a wing flap, triggered by a burning fuse built 1978, crashed about a year later No own photos, sorry

Gerd Kirchert GK875 Standard Boss

r/c glider made of fiber-reinforced plastic with wooden wings and auxiliary engine wing span: 2450 mm length: 1220 mm controls: rudder and elevator (fixed throttle) engine: "O.S. Max 10", 1.62 ccm, 0.12 kW at 17.000 rpm prop: 8 x 5" (20 x 12 cm) receiver: Graupner varioprop mini superhet 35 servos: 2x Graupner varioprop micro servo C05
	built 1979, while the orange Airfish rested in it's tree Better performance, but also very easy to fly

Gerd Kirchert GK874 Standard Airfish

design Erich Jedelsky 1974 wooden r/c glider with auxiliary engine wing span: 2450 mm length: 1160 mm controls: rudder and elevator (fixed throttle) original engine and radio: engine: "O.S. Max 10", 1.62 ccm, 0.12 kW at 17.000 rpm prop: 7 x 4" (18 x 10 cm) receiver: Graupner varioprop mini superhet S 27 servos: 2x Graupner varioprop micro servo C05 purchased 1979, in used condition	original engine and rc	electrified and modernized rc
electrified and modernized rc	modernized July 2009: engine: Mabuchi RS-550 SH brushed electric engine, auxiliary mounted esc: Robbe Roxxy Air-Control 819 Lipoly, brushed type battery: 3S LiPo 11.1 V, 2150 mAh, 25C prop: 8 x 5" (20 x 12 cm), backward folding receiver: Spektrum AR6210 2.4 GHz DSMX servos: 2x Graupner C677

Multiplex #214230 Fox

free throwing foam glider wing span: 500 mm length: 475 mm weight: 48 g purchased May 2010 maiden flight 2010-05-24 special edition "F3A European Championship Austria" maybe I'll add r/c components and engine...

Multiplex #264260 EasyStar II

foam r/c glider with auxiliary engine wing span 1366 mm length: 977 mm weight: 1640 g (1270 g without battery) controls: flapperons (flaps and ailerons), rudder, elevator, throttle engine: Multiplex Permax BL-O 2830-1100 brushless outrunner, 1100 KV, 235 W esc: Multiplex MultiCont BL-20 SD-L, 20 A prop: 7 x 6" (18 x 15 cm), backward folding receiver: Orange R610, 6 channels, Spektrum compatible 2.4 GHz DSM2 telemetry: Orange RX short range, Spektrum compatible servos: 4x Multiplex Nano-S battery: 3S LiPo 11.1 V, 2150 mAh, 25C

built October 2012 maiden flight 2012-10-08 a trainer for my son, and maybe I'll add LED's for night flying sometime

E-Flite EFLU3150 UMX Whipit DLG

miniature r/c disc launch glider wing span: 620 mm length: 620 mm weight: 43,3 g (39 g without battery) controls: rudder, elevator receiver: Spektrum PKZ3352 "all-in-one" electronics (3 channel 2.4 GHz DSMX receiver, telemetry, esc, two onboard-servos) battery: 1S LiPo 3.7 V, 150 mAh
	purchased December 2016 maiden flight 2016-12-26

Robbe 3146 Varta-Fly

r/c glider with engine wing span: 1800 mm length: 1100 mm controls: rudder, elevator, throttle) engine: Speed 600 brushed electric engine esc: Robbe Control-7 electronic on/off switch battery: 7S NiCd, 8.4 V, 2Ah prop: 9 x 5.5" (23 x 14 cm), backward folding receiver: Robbe FP-R114H 40MHz servos: 2x Robbe FP-S14B
	purchased March 2017, in used and damaged condition sorry, no own pictures yet
